SiFive Performance
P400-Series

P450/470: Efficiency-Focused OoO Processors

The SiFive Performance™ P450/470-Series application processors are SiFive’s first efficiency-focused Out-of-Order processors. The P400-series is derived from the successful and mature P500-Series, with considerable finely-tuned optimizations for best-in-class performance efficiency and compute density.

The P470 vector application processor, with a 128-bit RISC-V Vector ALU, is capable of 2x the single thread performance of an Arm Cortex-A55, achieving >8 SpecINT2k6/GHz, still within similar power budgets, representing a significant upgrade to legacy efficiency class cores currently available.

For applications that don't require vector compute, or for more area-constrained markets, the P450 offers similar performance levels in a smaller area footprint.

SiFive Performance
P400-Series Key Features

  • Full support for the RVA22 RISC-V profile specification for enabling 64-bit apps processors running feature rich OS stacks such as Linux, Wear OS, and Android.
  • Best-in-class RISC-V performance efficiency
    - Coherent multi-core, multi-cluster processor configuration, up to 16 cores
    - Performance >8 SpecINT2k6/GHz, twice the single thread performance of the Arm® Cortex-A55® (P470 Processor)
    - 1x 128-bit RISC-V Vector ALU, compliant the ratified RISC-V Vector specification as well as the (P470 Processor)
    - RISC-V Vector Cryptography extension (P470 Processor)
  • P400-Series Architectural Features
    - 64-bit RISC-V core with extensive virtual memory support
    - 3 issue, out-of-order pipeline tuned for scalable, highly efficient performance
    - Private L2 Caches and Streaming Prefetcher for improved memory performance
    - SECDED ECC with Error Reporting
  • Enabling next generation Wearable and Consumer applications
    - Advanced interrupt controller with support for MSI style interrupts and virtualization
    - System Level Virtualization IP
    - Cache stashing to L3 for tightly coupled accelerators

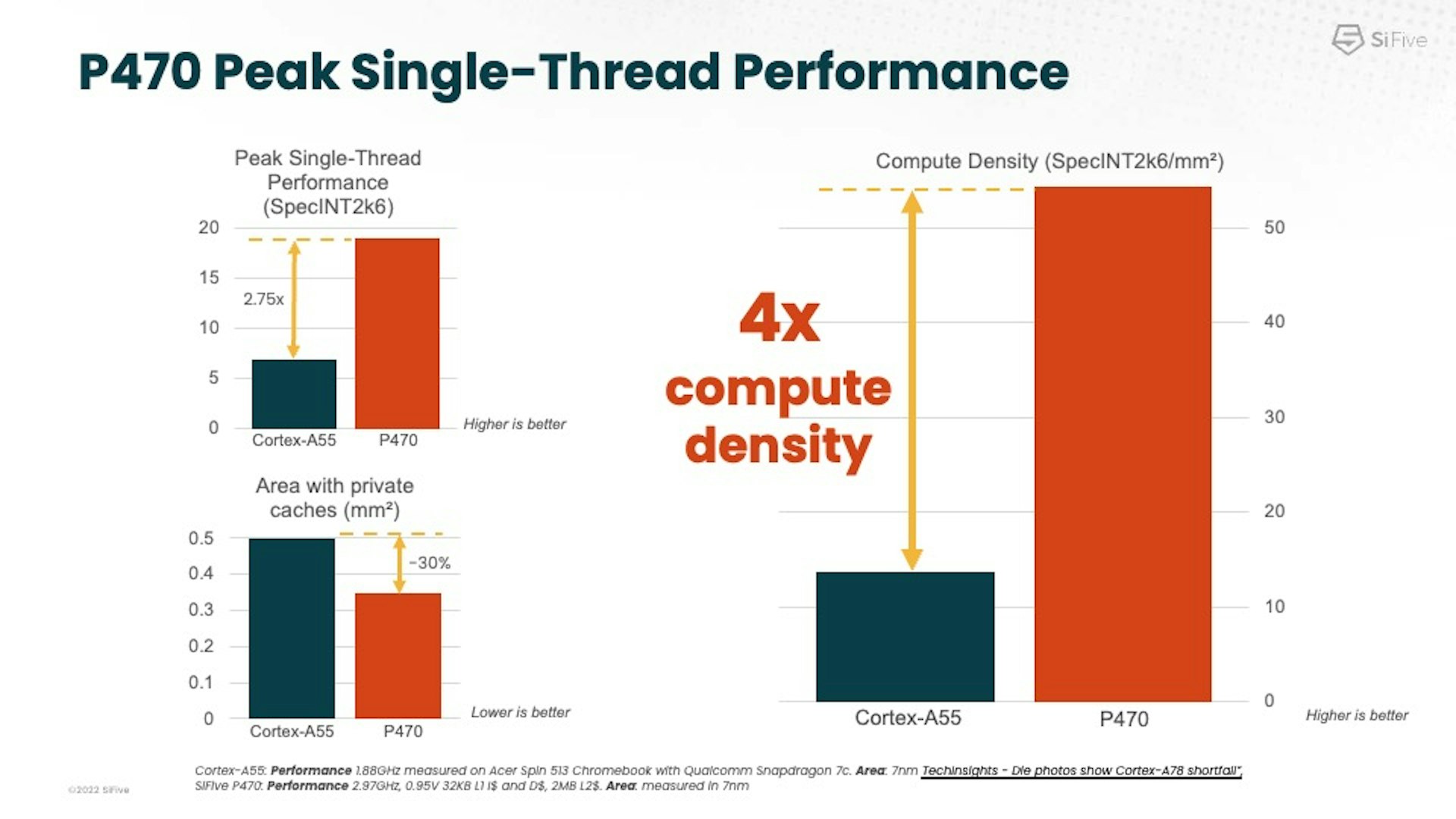

p470 peak single-thread performance

SiFive Performance Family

P600 Series
Performance
  • High performance cores for general purpose applications
  • 4-wide out-of-order core
  • Scalable to up to 16 cores
  • RVA22 with 2x128-bit Vectors/vector crypto
P800 Series
Performance
  • Highest single threaded performance cores
  • 6-wide, out-of-order core
  • Scalable to 256 cores
  • RVA23 with 2x128 bit vectors
  • CHI bridge
  • RAS Functionality
