SiFive Automotive
E6-A Series

Automotive E6-A

The SiFive Automotive™ E6-A series is designed for a variety of real-time, 32-bit applications, from system control to hardware security modules (HSMs) and safety islands, and of course for use as standalone in microcontrollers.

A mid-range, small and power efficient 32-bit embedded processor that is fully compliant with the RISC-V ISA. Its advanced memory subsystem enables inclusion of integrated memory and caches.

  • Broadest range of optimized RISC-V safety processors (ISO 26262 ASIL B, ASIL D and split-lock)
  • ADAS/AD, IVI, Body, Zonal, Powertrain, Central Compute
  • Safety Islands

SiFive Automotive
E6-A Features

The SiFive Automotive E6-A Series is a 32-bit RISC-V processor family, optimized for area, and efficiency, specifically designed for the Automotive and Functional Safety markets. Building on the robust foundations of the mature SiFive Essential™ portfolio, the multicore capable design of the E6-A Series offers industry best-in-class functional safety support as a Safety Element out of Context to enable use in applications with Automotive Safety Integrity Level (as per ISO 26262) up to ASIL B and ASIL D.

The E6-AB, targeted at ASIL B integrity levels, employs minimal hardware redundancy of the logic to guarantee safety metrics are satisfied, without the use of Software Test Libraries (STL), enabling faster time to market and minimizing software integration work.

The finely tuned combination of out-of-the-box features and design scalability ensures designers can achieve the optimal balance of power, performance, and area while achieving the fastest time to market for the automotive microcontrollers, system controllers, battery management systems (BMS), and safety islands for SoC markets. In addition to the automotive market, the E6-A series is also an ideal choice for broader deployment in microcontroller applications requiring functional safety capabilities.

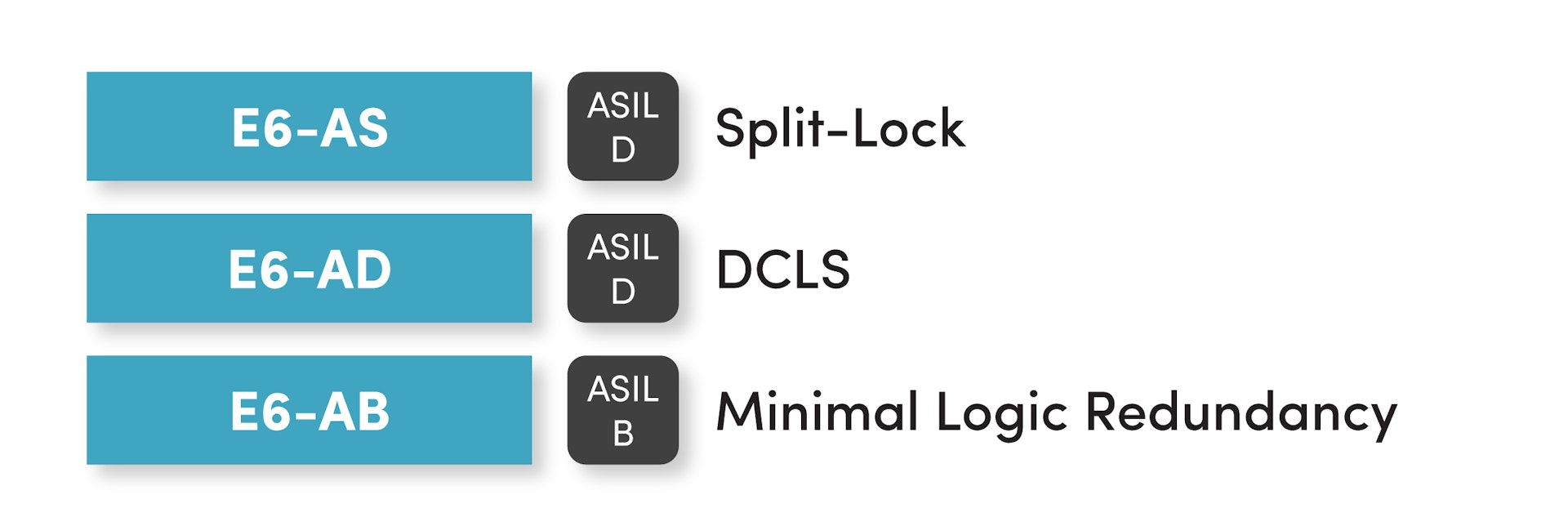

e6-a diagram

SiFive Automotive E6-A Series Key
Features and Support

  • 32-bit RISC-V ISA
  • ASIL B and ASIL D area optimized product variants
  • Functional Safety Package and Independent Assessment
  • Single Issue, in-order 8-stage Harvard Pipeline
  • Up to 1.96 DMIPS/MHz, 3.56 CoreMark/MHz
  • Optional SECDED ECC support on Level 1 memories
  • 32-bit physical addressing
  • Double, Single, and Half-precision floating point
  • Configurable range of memory and SoC interface options
  • Flexible and configurable  interfaces, fully compliant with industry standard AMBA protocols
  • Direct, dedicated Core Local Port for hardware peripheral/accelerator connectivity
  • WorldGuard Security
  • Debug and Trace

SiFive Automotive Family

E7-A Series
Automotive
  • 32-bit superscaler
  • High performance and efficiency
  • ASIL B, D
S7-A Series
Automotive
  • 64-bit superscaler
  • High performance embedded
  • ASIL D
