SiFive Performance
P600-Series

P650/P670: High Performance in a Small Footprint

The SiFive Performance™ P600-Series processors are targeted for a wide range of applications that can benefit from industry leading compute density. These are both consumer and industrial grade applications where high performance is needed within a smaller footprint.

The P670 vector application processor features a thirteen-stage, four-issue, out-of-order pipeline and offers best-in-class performance, with >50% uplift over the SiFive Performance P550, while maintaining a significant performance-per-area advantage compared to the Arm® Cortex®-A78.

For applications that don't require vector compute, or for more area-constrained markets, the P650 offers similar performance levels in a smaller area footprint.

P600 Series Key Features

  • Full support for the RVA22 RISC-V profile specification and Vector 1.0 and Vector Crypto for enabling 64-bit apps processors running feature rich OS stacks such as Linux and Android.
  • Breakthrough RISC-V performance
    - Coherent, multi-core, multi-cluster processor configurations, with up to 16 cores
    - Highest performance commercially licensable RISC-V processor
  • >13 SpecINT2k6/GHz (P670 Processor)
    - 2x 128-bit RISC-V Vector ALUs compliant with the ratified v1.0 RISC-V Vector specification
    - RISC-V Vector Cryptography extension
  • P600-Series Architectural Features
    - 64-bit RISC-V core with extensive Virtual Memory Support
    - 4-issue, out-of-order pipeline tuned for scalable performance
    - Private L2 Caches and Streaming Prefetcher for improved memory performance
    - SECDED ECC with Error Reporting
  • Enabling next generation high performance applications
    - RISC-V Hypervisor Extension and System-Level Virtualization IP
    - Advanced interrupt controller with support for MSI style interrupts and virtualization
    - SiFive WorldGuard System Security
    - Cache stashing to L3 for tightly coupled accelerators

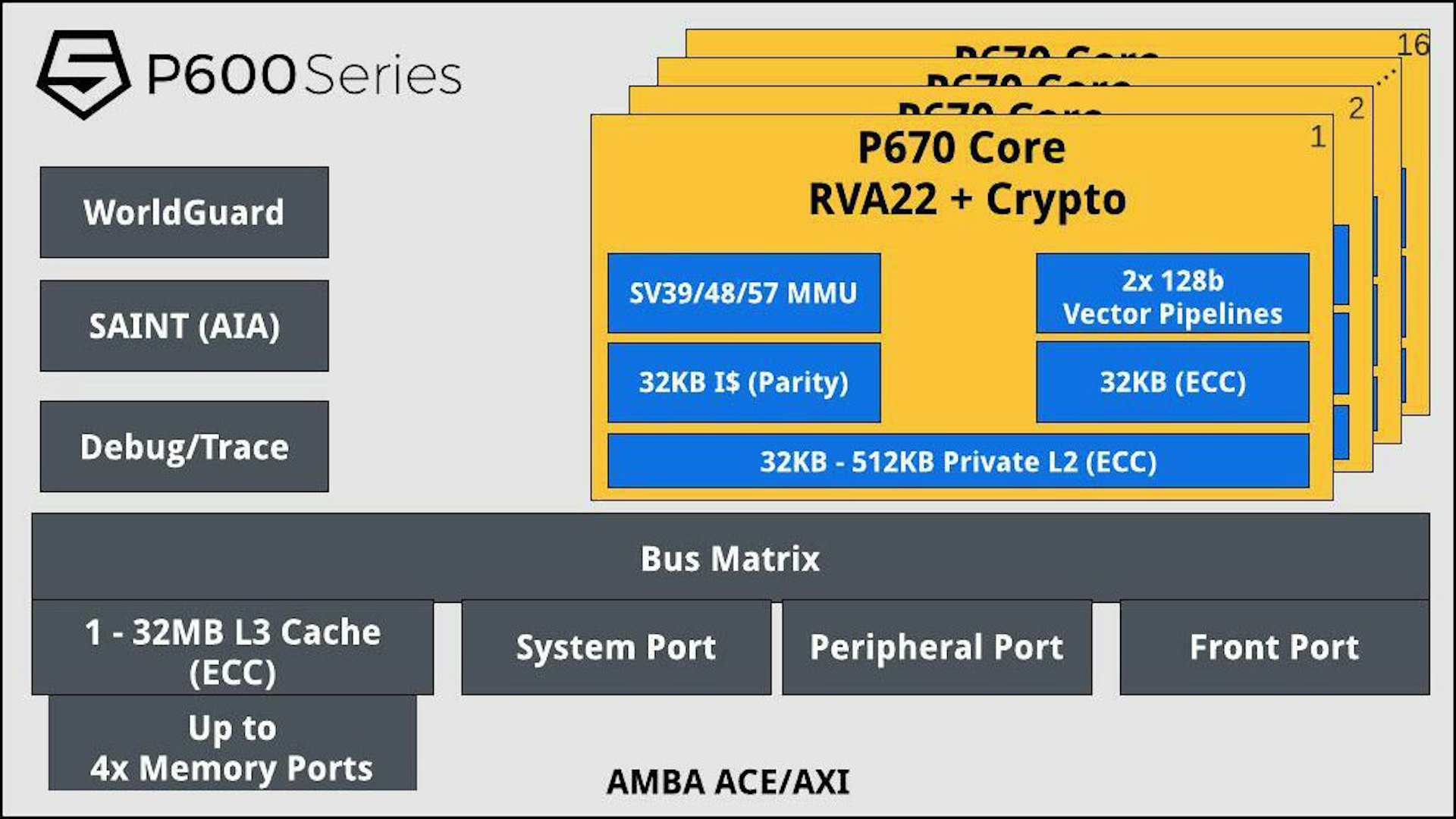

P600-Diagram

SiFive Performance Family

P400 Series
Performance
  • Highly efficient, lowest power cores
  • 3-wide out-of-order core
  • Scalable up to 16 cores
  • RVA22 with 1x128-bit Vectors/vector crypto
P800 Series
Performance
  • Highest single threaded performance cores
  • 6-wide, out-of-order core
  • Scalable to 256 cores
  • RVA23 with 2x128 bit vectors
  • CHI bridge
  • RAS Functionality
