HiFive

Unmatched
Rev B

Freedom Unmatched

Based on the success of the HiFive™ Unleashed and Linux software ecosystem enablement, HiFive Unmatched ushers in a new era of RISC-V Linux development with a high performance development platform in a standard PC form factor.

PCle Gen3

High Speed Interface

SiFive Freedom U740 SoC

SiFive RISC-V Processor Cores

16GB DDR4

Memory

USB 3.2

I/O Connectivity

Details

The development board is powered by the SiFive Freedom U740 (FU740), an SoC that includes a high-performance multi-core, 64-bit dual-issue, superscalar RISC-V processor (SiFive Essential™ U74-MC) with 16GB of DDR4, Gigabit Ethernet, PCIe expansion, USB 3, and M.2 sockets for Wi-Fi, Bluetooth and NVMe storage. A 5th core (a SiFive Essential S71 monitor core) is available for real time applications. SiFive Mix+Match technology offers a potent combination of application and real-time processing. The S71 (RV64IMAC) can service auxiliary functions and cooperate with the U74-MC cluster, making this an ideal heterogeneous software development platform where Linux and a RTOS can co-exist.

The updated HiFive Unmatched Rev B boards are available through Mouser and are ready for fulfillment from the warehouse a couple of weeks from the time an order is placed.

Features & Specifications

SoC

SiFive Freedom U740 SoC

Memory
16GB DDR4

Flash Memory
32MB Quad SPI Flash

Removable Storage
MicroSD Card

User I/O
4x USB 3.2 Gen 1 Type A Ports (1 Charging Port)
1x MicroUSB Console Port

Networking

Gigabit Ethernet Port

Expansion Capabilities
  • x16 PCIe® Gen 3 Expansion Slot (8-lanes Useable)
  • M.2 M-Key Slot (PCIe Gen 3 x4) for NVME 2280 SSD Module
  • M.2 E-Key Slot (PCIe Gen 3 x1) for Wi-Fi / Bluetooth Module

Board Form Factor
Industry Standard Mini-ITX

Advantages of HiFive
Unmatched Rev B

If you’re a serious software developer, kernel developer, or Linux enthusiast, we can think of a few reasons to use this board:

  • Port software to the RISC‑V platform
  • Evaluate the SiFive U74‑MC SoC
  • Want multi-core, Linux-capable RISC‑V hardware
  • Want to support open source hardware
  • Need to create the next great thing!

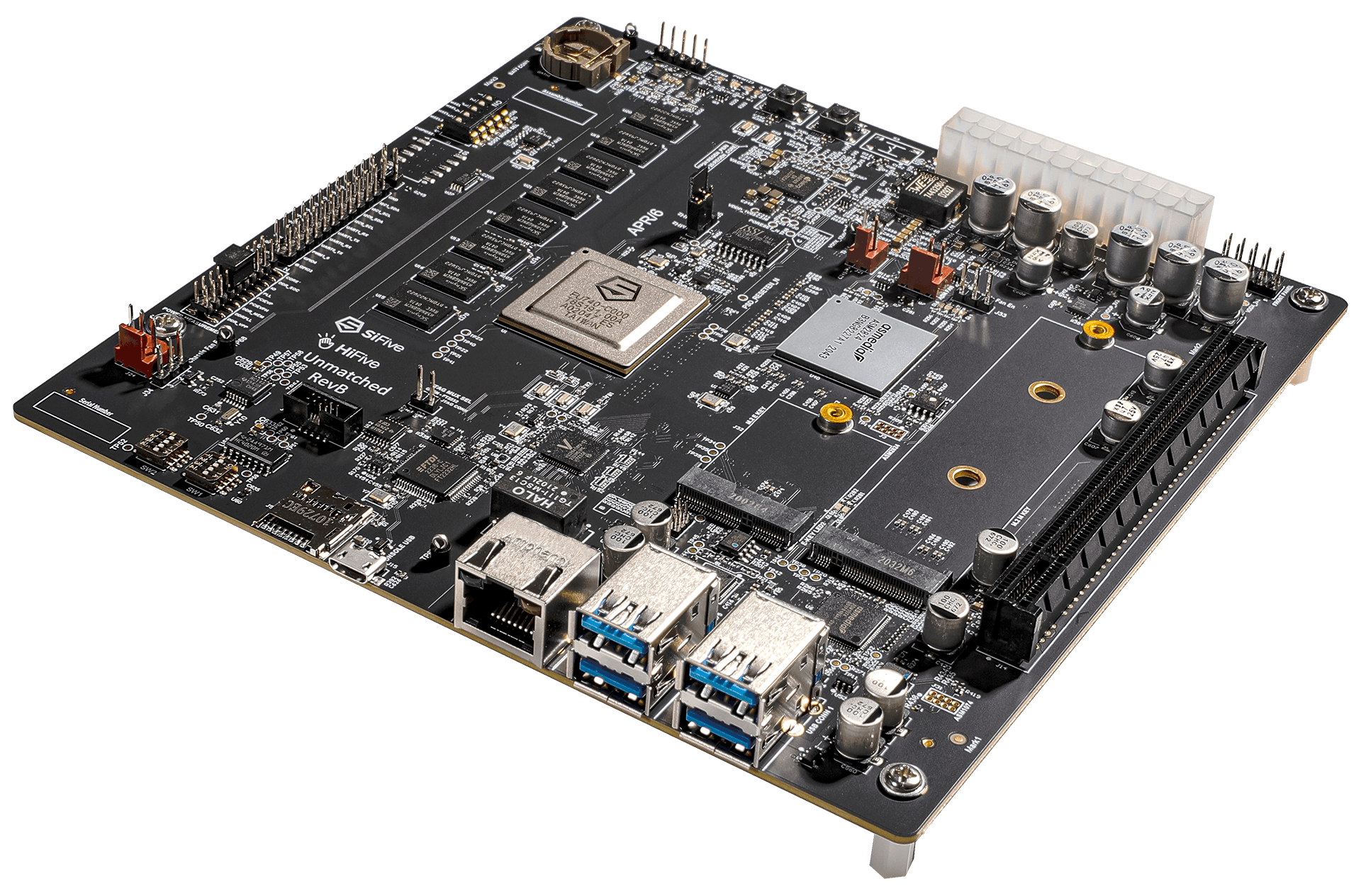

hifive unmatched rev b

Dimensions

170 mm wide

170 mm depth
